Console Port Management Switch CMS

12454651245464

Asynchronous Port Switch for Telnet and Modem

The CMS Series has been replaced by the RSM Series of Terminal Servers !

Applications

  • Local or Remote Console Port Switching
  • UNIX Serial Console Management
  • Telnet or Dial-Up Access to Consoles at Remote Locations
  • Share Multiple Console Ports Using a Single VT100 Terminal or PC
  • In-Band/Out-of-Band Network Management

Features:

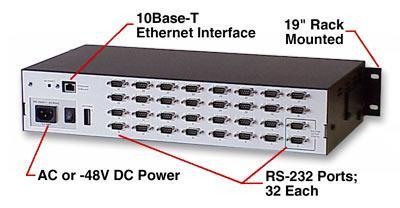

  • up to 32 RS232 DB-9 Serial Ports
  • 10Base-T Ethernet Port
  • Modem Auto-Setup Command Strings (User Definable)
  • IP Security Features
  • Non-Connect Port Buffering
  • Up to the number of ports plus one simultaneous inbound Telnet Sessions
  • Co-Location Features
  • Any-to-Any Port Switching
  • Port-Specific Password Protection
  • Data Rate Conversion, 300 to 115K bps
  • No Software Required
  • Easy-to-Use Menu/Commands

Telnet and Dial-Up Console/AUX Port Switches

CMS Series Console Port Management Switches provide secure, in-band and/or out-of-band access to RS232 console ports and maintenance ports on UNIX servers, routers, and other network equipment. System Administrators can access remote devices in order to change configuration parameters, connect users to restricted ports, collect buffered data, and perform a variety of other administrative tasks. The CMS is ideal for colocation applications; two different password security levels protect access to restricted ports and configuration commands. Users are allowed to connect to only the ports provided by their passwords, while supervisors are allowed to connect to any port or invoke configuration commands. In addition to the convenient features found on our other CMS units, the CMS-32 also includes Syslog Reporting and SNMP capability. The CMS is available in 32, 16 and 8 port Models.

48 V DC Operation:

All CMS models are available with 48 V DC Power Supply
