Network Boot Bar NBB-230

12454561245457

5-Plug, 230 VAC Network Boot Bar

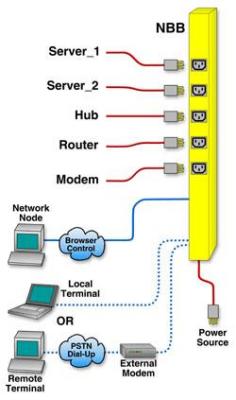

The new, NBB-230 Network Boot Bar allows you to remotely control power and initiate reboot cycles on 230 VAC rack mounted equipment. Like the 115 VAC NBB-115, this 230 VAC version of the NBB also features "Zero Unit" mounting, allowing you to add remote power control capability to your equipment rack, without sacrificing valuable rack space. The NBB-230 also features a user-friendly Web Browser interface, to provide simple, yet effective control of switching, reboot and configuration functions, and a clear, easy-to-master ASCII Text Interface for applications that require command initiated control of power functions via Telnet. Two different levels of password protected security are provided: an administrative level, which allows access to switching, reboot and configuration functions, and a user level which permits switching and reboot functions, but does not permit access to configuration menus. If colocation is an important factor in your application, users can also be limited to only specific plugs based on the password entered at login. Passwords are transmitted using basic 64 bit encryption to ensure that command mode access remains secure

Technische Daten

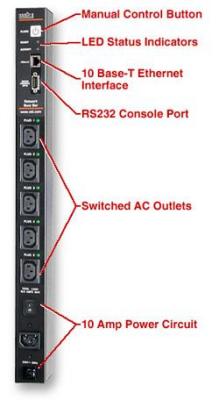

  • Web Browser Access for Easy Setup and Operation
  • Encrypted Password Security
  • For 230 VAC Power Control
  • Five (5) Individual Outlets
  • Each Outlet can Switch up to a 10 Amp Load
  • On / Off / Reboot / Default Switching
  • User-Defined Power-Up Default Status
  • IP Addressed, 10Base-T Interface
  • RS232 Modem / Console Port
  • Network Security Features
  • Power-Up Sequencing
  • Manual Power Control Button
