Remote Power Control and Remote Reboot Products

1245453

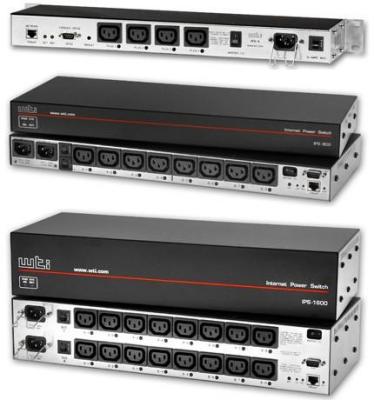

The IPS-Product Series "Internet Power Switch" allows you to control 4/8/16 115/230 VAC power outlets at the click of a mouse. Each individually controlled 115/230 VAC outlet can be switched on, off, rebooted or set to a user-defined default status using commands issued via your web browser, telnet program, remote modem or local PC. The IPS-800 serie is designed for rack mount applications, and provides two different levels of password protected command security; the Administrator Level password allows access to all switching, reboot and configuration functions, while User Level passwords permit switching and reboot control, but do not allow the unit's configuration parameters to be changed. In order to ensure command security, passwords are transmitted via web browser using basic 64 bit encryption. The IPS 8/16-Serie includes two separate 10 Amp power circuits, providing a total of 40 Amps maximum load.

Remote Reboot of Hubs, Muxes, Routers and other Devices

Features:

IPS-400 and IPS-400CE with 4 Plugs

  • Web Browser Access for Easy Setup and Operation
  • Encrypted Password Security
  • four (4) Individual Switched Outlets
  • Single 10 Amp Power Circuit;
  • Total 10 Amps Maximum Load
  • On / Off / Reboot / Default Switching
  • User-Defined Power-Up Default Status
  • IP Addressed, 10Base-T Interface
  • RS232 Modem / Console Port
  • Network Security Features
  • Power-Up Sequencing
  • Manual Power Control Button

IPS-800 and IPS-800CE with 20 Amp and 32 AMP

  • Web Browser Access for Easy Setup and Operation
  • Encrypted Password Security
  • Eight (8) Individual Switched Outlets
  • Dual 10 or 16 Amp Power Circuits; Total 20 or 32 Amps Maximum Load
  • On / Off / Reboot / Default Switching
  • User-Defined Power-Up Default Status
  • IP Addressed, 10Base-T Interface
  • RS232 Modem / Console Port
  • Network Security Features
  • Power-Up Sequencing
  • Manual Power Control Button

IPS-1600 and IPS-1600CE with 20 Amp and 32 AMP

16-Plug Internet Power Switches

The IPS-1600 Internet Power Switch Series provides a simple, effective means to control 115, 208, or 230 VAC power in a rack mount environment at the click of a mouse. Sixteen individually controlled AC outlets can be switched on, off, rebooted or set to user-defined default status in response to commands issued via web browser, telnet, remote modem or local terminal. The IPS-1600 Series is also ideal for co-location applications, and features two separate levels of password protected security; the Administrator Level allows all switching, reboot and configuration functions, and the User Level permits only switching and reboot functions, and does not allow access to configuration menus. The IPS-1600 Series includes two separate 10, 15, 16 or 20 Amp power circuits, providing a total of up to 40 Amps maximum load

  • Dual Power Circuits: Up to 16 Amp per Bus; Total Up to 20 or 32-Amps Maximum Load at 230 V AC
  • Sixteen (16) Individual Switched Outlets
  • Web Browser Access for Easy Setup and Operation
  • On / Off / Reboot / Default Switching
  • User-Defined Power-Up Default Status
